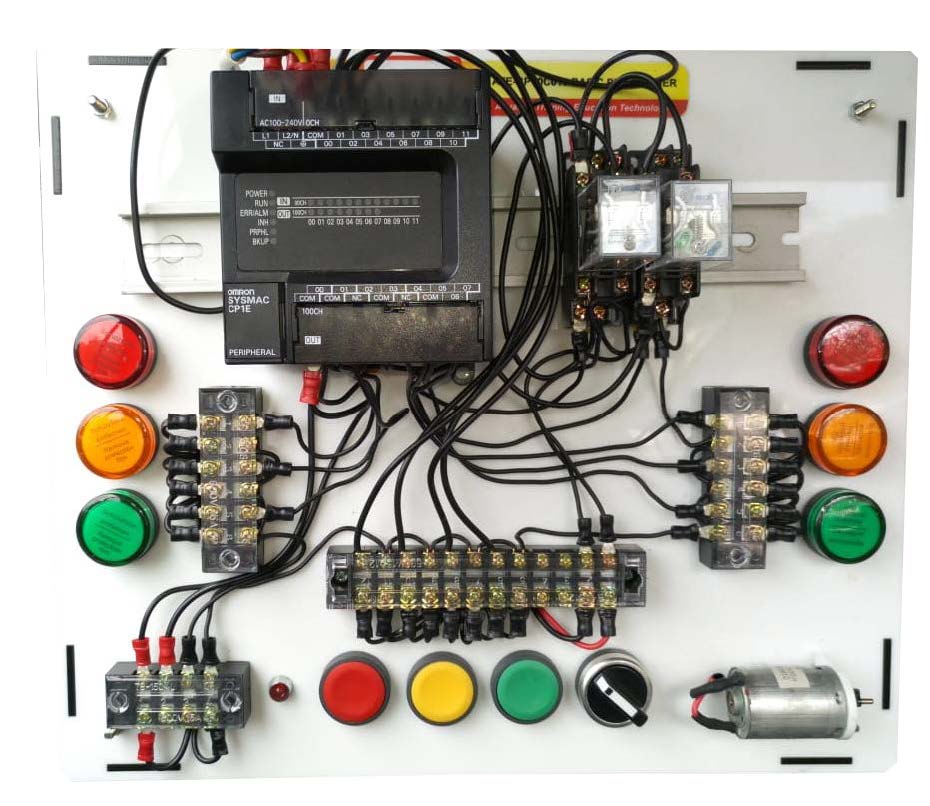

ATE-BPTOC013 BASIC PLC TRAINER OMRON CP1E

PRODUCT DESCRIPTION :
ATE-BPTOC013 introducing the student to the basic operation, programming and troubleshooting of industrial programmable logic controllers. A curriculum is provided incorporating many learning activities related to basic sequence, circuit flow, ladder logic programming and trouble shooting. Many activities reflect realistic industrial applications.

PRODUCT FEATURE :
• Works with Existing Equipment
• Equipped with manual switches to simulate all inputs
• Equipped with indication lights to simulate all outputs
• Open system. Ready to communicate with personal PC
• Easily and Portable
• Shortage-circuit protection
• Allows for attachment to external devices.
• Easy connect ability to existing motor sensors, valves and switches through standard banana jacks

MAIN PLC MODULE
1. PLC Omron CP1E E20-SDR-A 1 Pcs
2. Relay 8pin with base 2 Pcs
3. Switch Normaly Open (NO) 3 Pcs
4. Switch Normaly Close (NC) 1 Pcs
5. Power Supply 24 VDC 3 Amp 1 Pcs
6. Pilot Lamp 24 VDC 6 Pcs
7. Fuse Protetion 5 Amp 1 Pcs
8. Cable Power 1 Pcs9. Switch ON / OFF 1 Pcs
10.Terminal Screw 4 Pcs
11. Motor DC 24VDC 1 Pcs
12. Din Rail 1 Pcs
13. Led Indicator 1 Pcs
14. Box Module 1 Pcs

EXPERIMENT TOPICS :
• Fundamentals of Logic
• Programming Language
• Developing Ladder Logic Programs
• Programming timers
• Structure of Control Systems
• Sequencer Programs
• Master Control & Zone Control Instructions
• Programming Counters
• Jump Instructions and Sub-routines
• Combined Counter and Timer Functions
• PLC Installation Practices
