Stepper Motor With PLC Training System
Description :

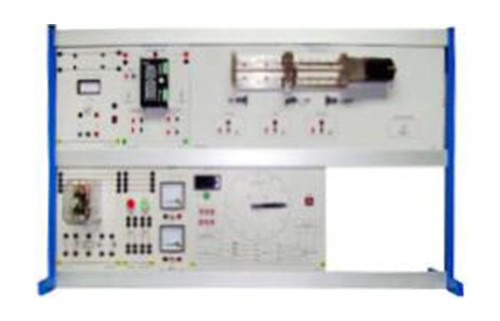

The Stepper Motor System is an integrated system for in depth studies Stepper Motor theory and working principles. The system comes with an upright control panel. The stepper motor system is connected via flexible coupling. The control panel comprises of Stepper Motor Driver, Time Delay Contactor, Programmable Logic Controller Unit, PLC Input Terminal Unit, I/O Unit, PLC Output Terminal Unit, and all wiring connections brought out to 4mm terminals. Connecting leads with banana plugs facilitate quick and easy connections between the Stepper Motor System and other control. The Step Motor Unit stands independently with its own power input to simulate the frequency of the stepper motor. The operational and experimental manuals are provided in English.
Product Features :
- Works with Existing Equipment
- Equipped with manual switches to simulate all inputs and outputs
- Accommodates other PLC Brands too
- Actual Stepper motor control
- Integration between stepper motor driver and programmable logic controller unit
- Actual stepper motor unit with sensors for further study of motion control
- Easy connecting ability to existing motor sensors, valves and switches through standard banana jacks
- Can be combined with other control devices included industrial sensors and other mechatronics training equipment.
Main Supply Unit
- Leakage Current: 30mA
- CAM Switch : 3-Pole
- Emergency Stop
Power Supply Module
- Protection Fuse: 4.5A
- Dual output: 0 … 24VDC
- Input: AC 220V, 50/60Hz 1-Phase
- Desktop type with 4 mm safety and power on/off LED indicator.
- Short circuit proof, CE Mark.
