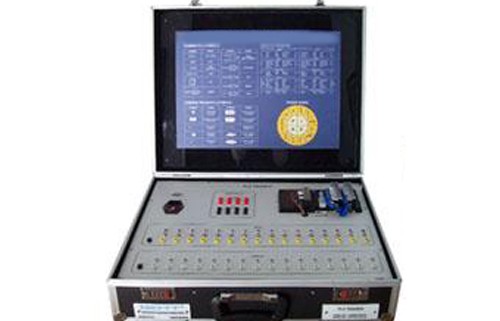

PLC Trainer
Description :
This trainer is a complete training system, introducing the student to the operation, programming and troubleshooting of modern industrial programmable logic controllers. A complete curriculum is provided incorporating many learning activities related to basic sequence, circuit flow, ladder logic programming and troubleshooting. Many activities reflect actual industrial applications. An optional hand-held programming pendant, input/output devices and a wiring kit are provided, making the device complete and ready for use without the need for additional accessories or a link to PC base programming, monitoring and control.
This product, together with its associated student manual & programming manual, creates a complete introductory course in PLCs, for industrial training applications as well as in the educational learning. A PLC (Programmable Logic Controller) is effectively a computer with I/O. The I/O (input/output modules) is a method of getting signals from the outside world into the computer and back again. The I/O is generally robust (so they can cope with noise and spikes). Also available are intelligent I/O cards (which effectively have a computer on the I/O card) for Intermediate Model and HMI devices (touch screen) for Advance Model.
Specification :
PLC Main Unit
- Controller PLC main unit
- Input 24V DC Input
- Output Relay Contact Output
- Programming console (optional) Full programming features on back lit Two line LCD display Keypad Hand held programmer
- Cable Program download cable
- Memory 2K EEPROM memory
- Power Supply 24V DC 2.1A (short circuit protection)
Control Panel :
- Input Terminals 4mm ɸ Banana Jack
- Output Terminals 4mm ɸ Banana Jack
- Input Switches Toggle Switch
- Simulation IndicatorsLED
- DC Supply Terminal24V DC +/-
Standard Accessories :
- Connecting cables for drive unit to switches, LED, relays & other peripherals
- Connection leads
- Experiment manual
- Soft copy manual for easy print-out
- Teaching Pendant
- PLC progammer
