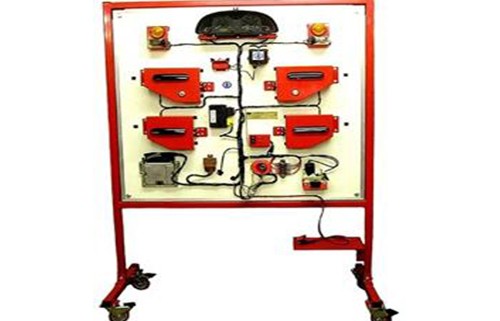

Alarm Immobilliser Trainer

DESCRIPTION
1) Fully operational alarm and immobilizer system
2) Complete with instrument (light, indicator, siren, switching, ECU etc.)
3) RF shield for simulating key transponder error
4) Actual door operation using original door latches
5) Board mounted in a vertical frame with castors
6) Powder coated paint finish

SPECIFICATION
Main Technical Specifications :
• Pin out facility on all electrical components using 2 mm sockets enabling ‘real-time’ values to be taken without compromising the wiring harness.
• Includes Fault Insertion Module (Ten faults, Lockable).
• RF shield for simulating key transponder error.
• Actual door operation using original door latches.
• Board mounted in a vertical frame with castors.
• Powder coated paint finish.
Other Specifications :
• Supply Voltage: 12V DC
• Dimensions (WxLxH): Aprox. 1000 x 750 x 1950 mm
• Weight: 110 kg
