Automotive Electrical System Training
General Description :

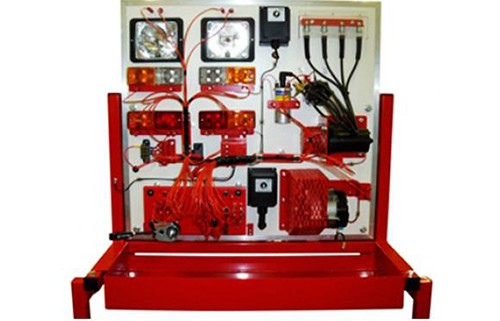

The Original components should be mounted on clear Plexiglas panels that allow high visibility of all parts and wiring. Panels are fixed vertically to a frame which is mounted on a high visibility heavy-duty cabinet that contains three storage drawers. Panels feature wiring guides and icons which have been silk-screened onto the panels. The wires of each component are brought to 4mm wiring terminals mounted on the panel.
Technical Specification :
12 Volt. DC transformer
One set of Dash board Panel
instrumentation panel
One set of 12 volt Rear Lighting panel
One set of 12 volt Front lighting panel
One set of Conventional ignition panel
electronic ignition panel
diesel ign ition panel
accessories panel
radio panel
tra iler panel
altlgen test system
alternator (a/c)
generator (d/c)
starter motor
theft ala rm panel
central lock panel
power window panel
four level mobile fl oor stand
three leve l mobile floor stand
two level bench top stand
12 volt de power supply
frame with rail (input 110/220 vo lt, 50/60 hz)
ignition timing light
automotive electrical tester
storage cabinet for modules
electrical leads sets with 4mm plug
