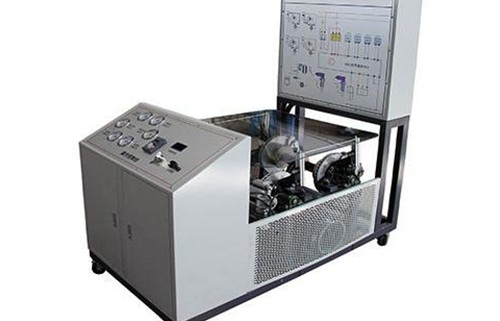

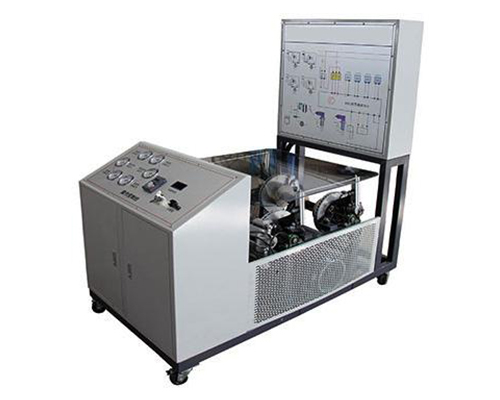

ABS,ASR & ESP Training Workbench
DESCRIPTION
The training ABS/ASR/ESP braking system, with complete accessories, all parts are original parts. Motor drive can complete shifting gear ans testing which to truly response the working process of ABS/ASR/ESP braking system. Suitable for ABS brake system construction, working principle, setting fault and troubleshooting of middle and advanced vocational and technical schools and training institutions.
FEATURES
Based on original ABS/ASR/ESP braking system, working properly, shows the structure and working principle of ABS/ASR/ESP braking system
Complete vacuum brake booster experiment, large surface adhesion coefficient ABS braking experiment, small surface friction coefficient ABS braking experiment, asymmetric road ABS brake experiments, different adhesion coefficient road ASR work process experiments, oversteer ESP work processes experiments, less-steer ESP work processes experiments, ABS, ASR, EBD three controls priority principle experiment.
Motor with inverter control, speed adjustment can be achieved
The training sets are equipped with complete colored schematics and detection terminal of ABS/ASR/ESP braking system, various signal parameters of the sensors, solenoid valves can be detected by special instruments. For example, voltage, resistance, frequency, etc;
Multi-plate clutch connected to the brake disc and the motor output shaft, to complete wheel brake differential
LED digital meter can show the brake master cylinder and the brake cylinder pressure changes in real time
The training units equipped with diagnostic communication link can be connected to a dedicated or general- auto decoders, electronically controlled automatic transmission system for read fault codes, clear fault codes read the data stream and other diagnostic functions;
Fault setting and assessment system ( see fault setting and assessment function description)
Training sets rotational positions are equipped with safety shields to avoid security risk;
Mobile device with locking casters which easy to move and facilitate to teach.
TRAINING CONTENTS
Structure composition and adjustment principle training of ABS/ASR/ESP brake system
Different roads, different loads, different steering characteristics training of ABS/ASR/ESP brake system
ABS/ASR/ESP brake system diagram analysis training;
Troubleshooting and confirmation training of ABS/ASR/ESP brake system
Fault phenomenon and analysis training of ABS/ASR/ESP brake system
Practical and theory test identification of ABS/ASR/ESP brake system.
TECHNICAL SPECIFICATIONS
Mobile device with locking casters which easy to move and facilitate to teach
The workbench with high-grade automotive paint, paint treated at high temperatures, against moisture and rust, with beautiful and durable appearance;
Dimensions Approx : 1000*1600*1800mm
