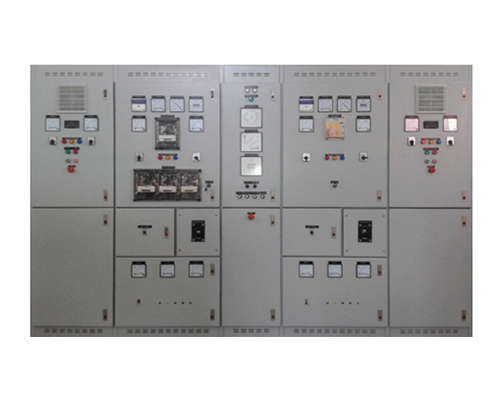

Synchronising Board

DESCRIPTION :
This is a typical electrical power generating station complete with synchronizing board but specially adapted for instructional purposes. This system consists of:

SPECIFICATIONS
SYNCHRONISING SWITCHBOARD
 2 x Circuit Breaker 20A, TP, c/w under-voltage/ shunt trip coil.
 2 x Neutral Knife Switch
 1 x Over Current Relay
 1 x Earth Fault Relay
 1 x Electronic Combined IDMT relay
 2 x Ammeter 0-40A c/w Selector Switch
 2 x Voltmeter 0-500V c/w Selector Switch
 2 x Frequency Meter
 2 x Reverse Power Relay
 2 x KW Meter
 2 x Power Factor Meter
 4 x Synchronizing Switch
 2 x Synchronizing Lamp
 1 x Synchronoscope
 1 x Double Voltmeter
 1 x Double Frequency Meter
 1 x Set of Current Transformers for metering and protection.
 1 x Set of Indicating Lights
 1 x Heavy Sheet Steel Console
