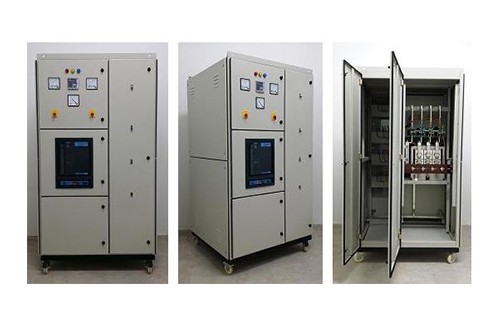

LV Main Switchboard Electro Magnetic IDMT-CUBICLE TYPE

Description :

This is typical electrical low voltage switchboard demonstator (electronic) but specialy adapted for instructional purposes.

Technical Specifications :

• Input Rating : 3 phase, 400V AC 50Hz
• 1 no. Air Circuit Breaker 600 Amp, 25kA TPN, draw out type, manual spring charge, c/w Mechanical & Electrical Interlock,
• Output : 2 x 32 A TPN Switch Fuse 2×32 A TPN MCCB 2 x 63 A Fuse Switch
• 1 x distribution board c/w :
  4 x 6 A MCB
  2 x 20 A MCB
  2 x 32 A MCB
  1 x 40 A Main Switch SPN
  1 x40ARCCBDP(100mA)
  Spare Compartment



Instrument :

• Digital Power Meter (2 Unit)
• Detection Method : True RMS Display: LCD
• Detect Frequency (Hz): 45 – 65
• Input Current Range : 5mA- 10A
• Input Voltage Range : 0 – 300v AC
