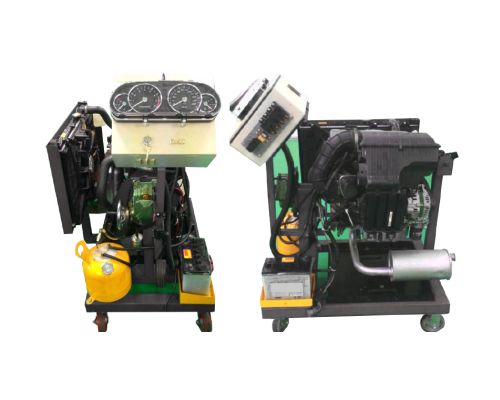

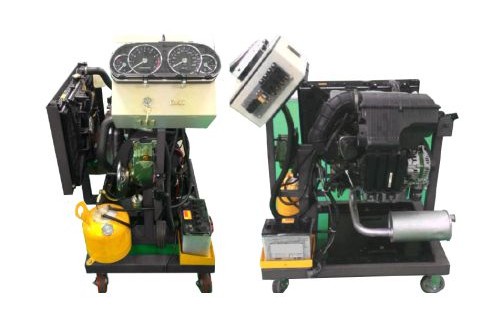

ENGINE CAMPRO (IAFM) ON STAND COMPLETE WITH WIRING

GENERAL SPECIFICATION / DESCRIPTION
Engine type :
 Petrol 4 cycle, transverse, 4 cylinders in line, DOHC, overhead valve, water cooler
 Cubic capacity: 1.6 liter
 Ignition: Fully electronic
Includes :
 Battery, starter, alternator, radiator, acceleration pedal and wiring.
 Panel board with fuses & fuse box, RPM meter, water temperature meter, ignition switch & keys, voltmeter and ammeter
 Complete on mobile stand for easy maneuvering
 Running in good condition

TECHNICAL SPECIFICATION
 Intake manifold assembly consist of complete with air cleaner
 Air cleaner with resonator
 Exhaust manifold
 Catalytic converter
 Main muffler complete with damper
 Sensor and gauge unit
 ECI – Multi
 Special built main engine wire harness compatible to communicate with Siemens ECU and control box.
 Integrated cooling system
 Electrical control unit (ECU)
 Right angle gear reducers
 Control panel box
 Stainless steel/ HDPE fuel tank (min. 5L capacity) complete with fuel pump and fuel indicator
 CVT gear box assembly

ACCESSORIES

Battery tray
Engine mounting with rubber type for absorb vibration
Paddle clutch system attach to main Engine Bench frame
Drain tank at the bottom of test bench for coolant & engine oil recycle
360 degree engine rotating with mechanical locking system for engine
