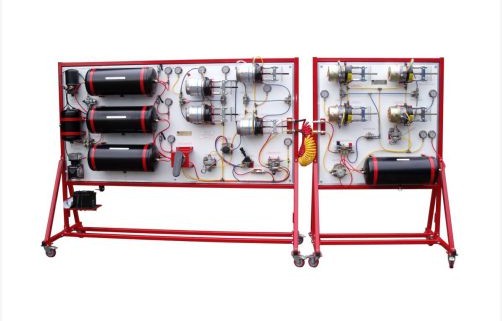

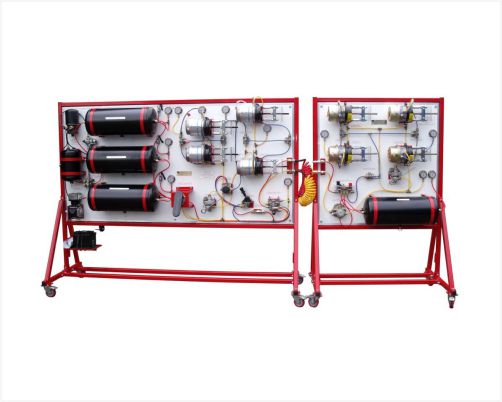

AIR BRAKE TRAINER

Fully operational 2-line Air Brake Tractor/Trailer Trainer.

Tractor Unit :
• Compressor (not driven: outside air supply required).
• Air Dryer. Air Tanks: Front, Rear and Secondary.
• Multi-Circuit protection valve. Foot Pedal: dual foot valve.
• Spring brake actuators. Load sensor valve. Park brake control valve.
• Trailer control valve, supply dump valve, pre-dominance valve.
• Double check valve. Brake light & warning buzzer. Suzie connectors.
• Relay valve. Quick release valves. One way valve.
• Circuit pressure gauges. Circuit pressure tap-in points.

Trailer Unit :
• Suzie connector plugs. Combined park/shunt valve.
• Relay emergency valve. Trailer air tank. Load sensor valve.
• Spring brake actuators. Quick release valves.
• Double check valve. Circuit pressure gauges.
• Colour coded piping highlighting the different pressure circuits.
• Air Brake Tractor/Trailer Trainer mounted on a trolley stand with castors. Powder coated paint finish.
• Spring actuators at full travel (200mm) & Ø8mm pipes slows down operation to be observed.
• Quick fit connectors over whole board.
• Supplied with a comprehensive training manual.

Dimensions: (W x L x H)
Tractor: 700mm x 2600mm x 2000mm
Trailer: 700mm x 1350mm x 2000mm
Weight:
Tractor: 230 Kg
Trailer: 130Kg
