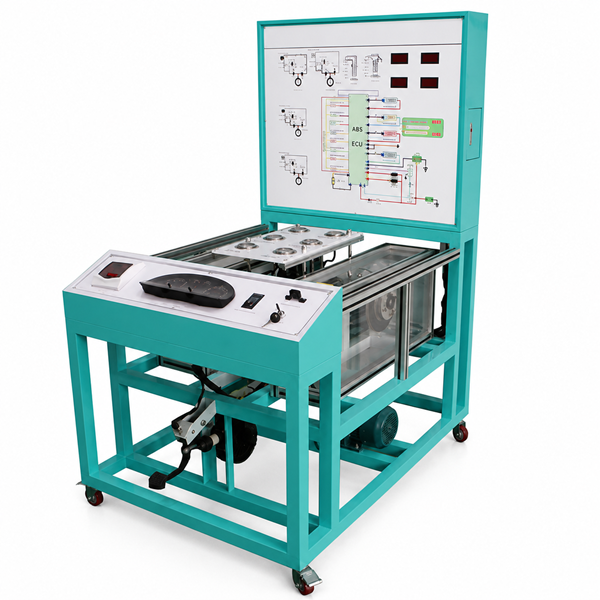

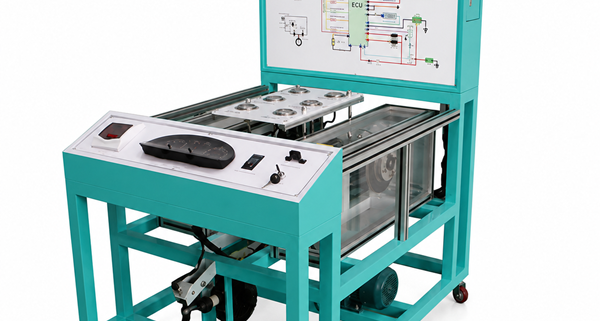

ASP-ABSESPTCS-007 ABS Brake Trainer Kit with ESP and TCS System
1.1 Specification
The ABS Brake Trainer Kit with ESP and TCS System is an advanced and fully functional training apparatus designed to demonstrate the structure, operation and diagnostic principles of modern automotive braking and stability systems. It enables trainees to observe, measure and analyze the real-time behaviour of ABS (Anti-lock Braking System), TCS (Traction Control System / ASR), and ESP (Electronic Stability Program) under various simulated driving conditions.
1.2 Additional Specification
- Based on original ABS/TCS/ESP braking system and working properly.
- Shows the structure and working principle of ABS/ASR/ESP braking system.
- Complete vacuum brake booster experiment, large surface adhesion coefficient ABS braking experiment, small surface friction coefficient ABS braking experiment, asymmetric road ABS brake experiments, different adhesion coefficient road ASR work process experiments, oversteer ESP work processes experiments, less-steer ESP work processes experiments, ABS, TCS, EBD three controls priority principal experiment.
- Motor with inverter control and speed adjustment can be achieved.
- The training sets are equipped with complete coloured schematics and detection terminal of ABS/TCS/ESP braking system, various signal parameters of the sensors, solenoid valves can be detected by special instruments.
- Multi-plate clutch connected to the brake disc and the motor output shaft to complete wheel brake.
- Differential LED digital meter can show the brake master cylinder and the brake cylinder pressure changes in real time.
- The training units equipped with diagnostic communication link can be connected to a dedicated or general-auto decoders, electronically controlled automatic transmission system for read fault codes, clear fault codes read the data stream and other diagnostic functions.
- Mobile device with locking casters which easy to move and facilitate to teach.
- The workbench with high-grade automotive paint, paint treated at high temperatures, against moisture and rust with beautiful and durable appearance
.
Technical Data Table
| Parameter | Specification |
| Power Supply | 230V – 240V AC, 50Hz |
| System Components | ABS Hydraulic Unit, ECU, Wheel Speed Sensors (4), Brake Pressure Sensor, Steering Angle Sensor, Yaw Rate Sensor, Pedal Switches |
| Diagnostic Interface | OBD-II standard |
| Communication | CAN-BUS network |
| Display | Digital meters for pressure, speed, steering angle |
| Fault Simulation | Up to 10 fault conditions (switch-based, lockable) |
| Control | Electromechanical drive system for wheel rotation and speed control |
| Mounting | Steel frame with caster wheels and brakes |
| Safety | Overcurrent protection, emergency stop and grounded chassis |
1.3 Accessories
- The machine shall be supplied complete with the following accessories:
- 3 pcs of digital multimeter
- Additional Wiring Harness & Test Leads
