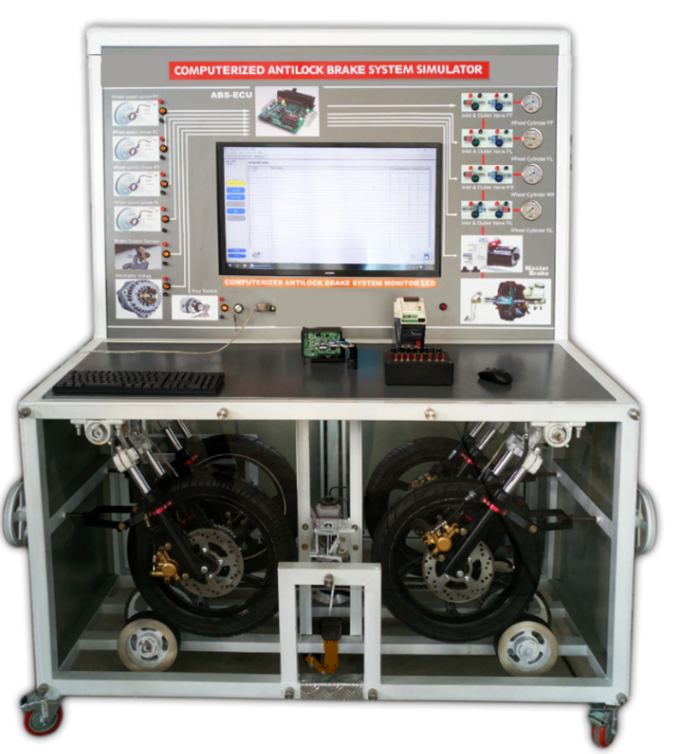

Computerized Antilock Brake System Simulator

Brake systems of modern motor vehicles are becoming increasingly complex. Electronic aids such as ABS, ASR and ESP are now standard features in such systems. They are designed to keep the vehicle stable with physical limits and thus help assist in protecting the driver. Each individual system is mutually dependent and in part uses the same sensor signals. With this training system the trainee becomes familiar with and understands how the various systems function and interact.

Function:

For research and training ABS function

TECHNICAL DATA:

1.          Originaly Car ABS component, ABS hydraulic unit, Wheel speed sensor 4 unit

2.         Brake switch, Brake manometer 4 unit, Four wheel and road simulator

3.         Master brake and pedal, ABS ECU

4.         Personal computer and LCD monitor / NOTEBOOK

5.         Steel Frame, with panel, and four roller wheels

6.         Indicator lamp, Measuring point 7.         Trouble box, Data acquisition software
