ABS SIMULATOR TRAINING UNIT
ABS SIMULATOR TRAINING UNIT
Product description

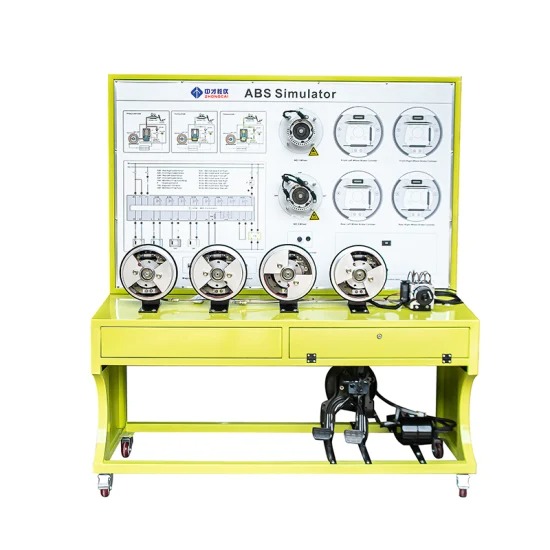

The trainer demonstrates structure and working principle of the auto ABS braking system.
Main features
1. Adopting a real car ABS braking system, fully demonstrating the composition and structure of the ABS braking system.
2. Use a driving motor to drive the transmission shaft to rotate to simulate car driving. Can demonstrate the working process of the automotive ABS system.
3. The test panel is equipped with ABS system circuit diagrams and hydraulic pipeline diagrams, allowing students to intuitively understand and analyze the working principle of the control system.
4. There are detection terminals installed on the test panel, which can directly detect the electrical signals of various sensors and control unit pins on the panel, such as resistance, voltage, current,
frequency signals, etc
5. The training platform is equipped with a pressure gauge that can display the hydraulic changes of the brake master cylinder and four brake wheel cylinders in real-time.
