HYBRID ENGINE CUT VIEW SIMULATOR

in

DESCRIPTION

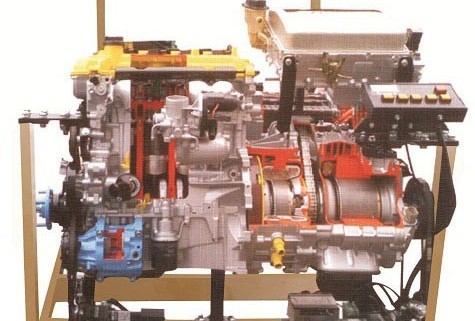

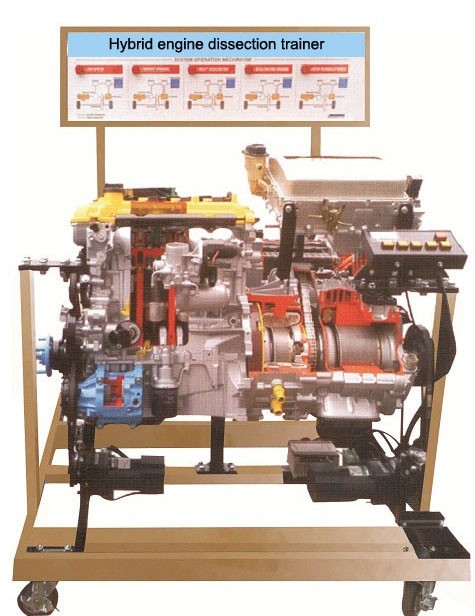

A petroleum electric hybrid most commonly uses internal combustion engine and electric motor to power the vehicle. The trainer use cutaway hybrid engine, to observe component and parts of hybrid engine.

SPECIFICATION
 Engine code INZ-FXE
 DOHC, gasoline and electricity hybrid
 Gasoline Engine Type 4-cylinder aluminium double overhead cam (DOHC) 16-valve
 Displacement 1.5L
 Panel made of ACP Plate
 Frame made of mild steel and finished by powder coating painting
 Equipped with rolling wheel for mobility

TECHNICAL DATA
 Engine code INZ-FXE
 Gasoline Engine Type 4-cylinder aluminium double overhead cam (DOHC) 16-valve
 Bore and Stroke 2.95 x 3.33 inches
 Compression Ratio 13.0:1
 Ignition System Electronic with Toyota Direct Ignition (TDI)
 Fuel/Induction System: Multi-point EFI with Electronic Throttle Control System with intelligence
 Electrical motor and CVT Transmission
 Motor Type Permanent Magnet
 Electric Motor Power Output 33 kW/44 hp @ 1,040 – 5,600 rpm
• Torque 350 N-m @0 – 400 rpm
• Maximum Power – Output – Horsepower 78 PS or 77 bhp or 57.4 kW
• Maximum Power RPM 5000 rpm
• Maximum Power Output 78 PS or 77 bhp or 57 kW @5000 rpm
• Maximum Torque 114.7 Nm
• Maximum Torque RPM 4200 rpm
• Maximum Torque Output 115 Nm

TRAINING MATERIAL
• Theory teaching material about hybrid engine (1 exemplar)
• Job-sheets for practical (1 exemplar)
