HYBRID CAR SECTION VIEW SIMULATOR

in

DESCRIPTION

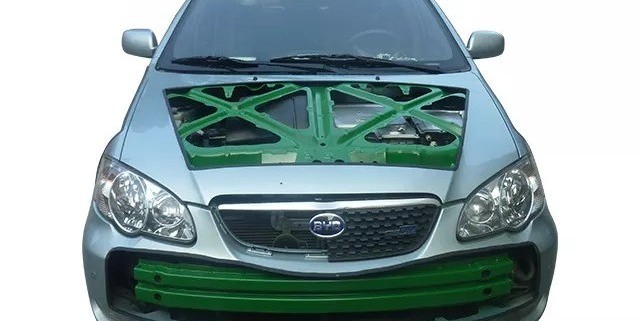

The hybrid car section view simulator uses a full vehicle with cut view processing to pose some car parts, such as engine and door structure. It is a comprehensive display car between the interior and exterior structure of the system components, a reasonable profile location, clearly show the internal structure and the movements of parts. The automobile anatomic model can meet the teaching of automobile whole vehicle structure and basic working principle. The cut view will allow us to be easy to see the construction structure, the sections are cut nearly, and the section are divided into different colours to make them to be more clear, and it can fully demonstrate the composition and structure of the vehicle.

SPECIFICATION
 Hybrid car
 Engine code INZ-FXE
 Gasoline Engine Type 4-cylinder aluminium double overhead cam (DOHC) 16-valve
 Hybrid Motor power system
 Hybrid Electrical system
 Hybrid Braking system
 Hybrid high-voltage system
 Hybrid steering system
 Structure frame and body panels
 Detection terminal
 Fault setting system
 BMS system layout and cognition
 Maintenance items and key of hybrid vehicle

TECHNICAL DATA
 Bore and Stroke 2.95 x 3.33 inches
 Compression Ratio 13.0:1
 Ignition System Electronic with Toyota Direct Ignition (TDI)
 Motor Type Permanent Magnet
 Fuel Tank 11.9 gallons (50 L)
 Exterior Length 444.5 cm or 175 inches
 Exterior Width 172.5 cm or 67.91 inches
 Exterior Height 149 cm or 58.66 inches
 Exterior Size (L x W x H) 444.5×172.5×149 cm or 175×67.91×58.66 inches
 Interior Length 189 cm or 74.4 inches
 Interior Width 144 cm or 56.69 inches
 Interior Height 122.5 cm or 48.22 inches
 Interior Size (L x W x H) 189x144x122.5 cm or 74.4×56.69×48.22 inches
 Wheelbase 270 cm or 106.29 inches
 Front Axle Length 150.5 cm or 59.25 inches
 Rear Axle Length 148 cm or 58.26 inches
 Ride Height – Ground Clearance 14.5 cm or 5.7 inches
 Weight 1270 kg
 Num. of Seats 5
 Num. of Doors 5
 Curb Weight 1545 kg
 Seat Rows 2
 Front/Rear Axis Length 150.5/148 cm
 Transmission Electronically controlled continuously variable transmission (ECVT)
 Suspension Front Independent MacPherson strut suspension with stabilizer bar
 Rear Torsion Beam with stabilizer bar
 Steering Type Electric power-assist rack-and-pinion
 Brake Front Type Power-assisted ventilated front disc
 Diameter 10.4 inches
 Rear Type Drum (hydraulic with power assist) with standard Anti-lock Brake System (ABS) and integrated regenerative brake system
 Diameter 7.87 inches
 Parking Pedal brake
 Wheels Wheel size 6.5 x 14 inches
 Type and Material Aluminium Alloy
 Tires Tire Size P175/65 R14
 Tire Type Low rolling-resistance tires

ACCESSORIES
 Multi meter digital
 High Voltage EV Safety support
 Cable Jumper

TRAINING MATERIAL
 Theory teaching material about hybrid engine (1 exemplar)
 Job-sheets for practical (1 exemplar)
