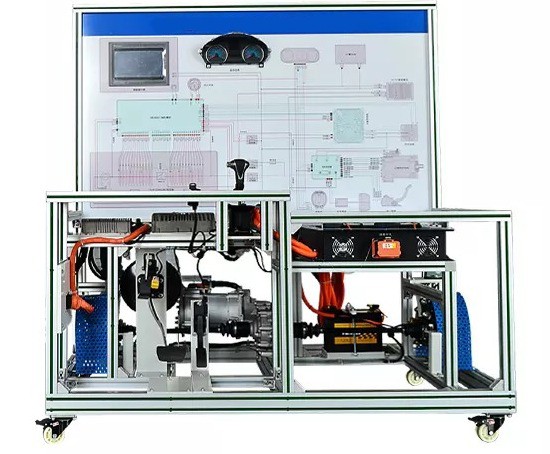

ASP-EVMDT-246 EV MOTOR DRIVE TRAINER
A new type of new energy vehicle power battery and power drive system teaching experiment equipment with pure electric vehicle physical parts, teaching functions such as simulation demonstration, working condition monitoring and fault detections.
The real-time observation of the composition of the new energy electric vehicle power supply and power system, the shape and relative position of each component, understanding of the structure and working principle, and the power supply, drive, control and system of the new new energy electric vehicle.
Product composition
- Main configuration: 72V battery pack, battery management unit, car charger, DC-CD converter, motor controller, 5Kw motor, high voltage protection professional wiring harness, 12V battery, shifting device, brake device, throttle device, transmission device , combination meter, monitoring display teaching system, fault setting system.
- Display the operation of starting, accelerating, decelerating, forward gear and reverse gear of the new energy electric vehicle drive motor. The panel combination meter can display the change of the running speed.
- The battery pack adopts a transparent cover to directly observe the internal structure of the battery pack. The device can realize various working principles such as battery charging, discharging, and battery monitoring.
- Configuration battery working status monitoring display, the display can display the real-time working status parameters of the power battery, including: voltage, current, vehicle speed; single battery operating voltage, temperature; battery abnormal monitoring data.
- The panel with circuit schematic diagram and working principle diagram, and is equipped with detection terminals for detecting line parameters.
