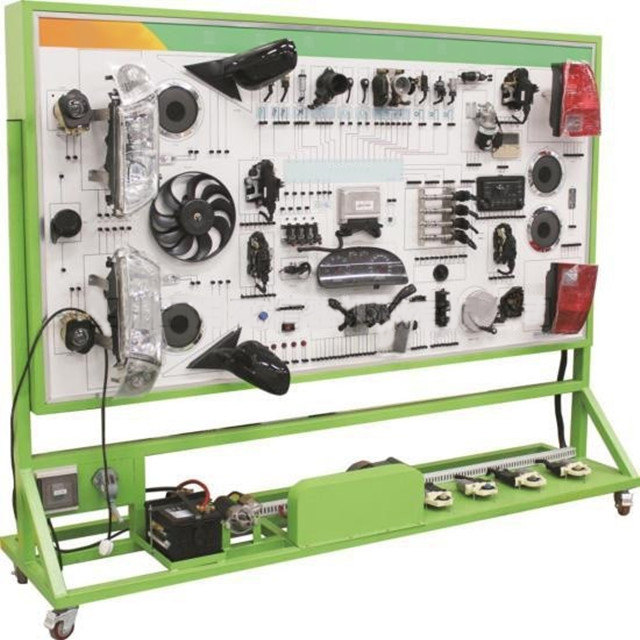

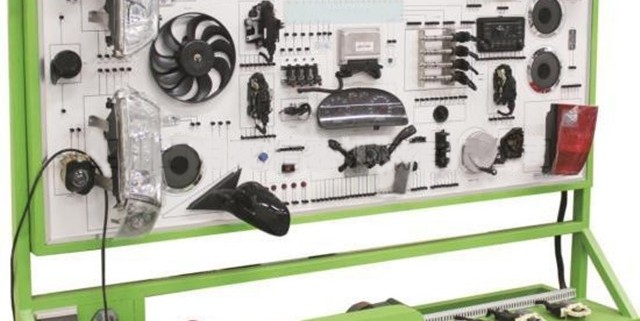

AUTOMOTIVE ELECTRICAL SYSTEM TEACHING BOARD TRAINING EQUIPMENT TRAINING WORKBENCH
Technical Specification
- Size: 1500mm x 1000mm x 1800mm (length x width x height)
- Operating power supply: 12V DC
- Fuel No: Engine mode
- Fuel tank size: 15L
- Operating temperature: -40℃ to +50℃
- The vehicle electric vehicle system is real and workable
- Connect the power supply, the manipulation of teaching plate on various kinds of electrical switches, buttons, real demonstration instrument system, lighting system, horn, wiper system, ignition system, electric Windows, electric door lock, sound system, starting system, charging system and so on the working process of the vehicle electrical systems.
- The display board printing has the color circuit diagram which has , and the students can directly control the circuit diagram and the object, and understand and analyze the working principle of each system.
- The inspection terminals are installed on the panel board, which can be directly used to detect the electrical signals of the circuit components of the vehicle motor vehicle on the panel, such as resistance, voltage, current, frequency signal, etc.
