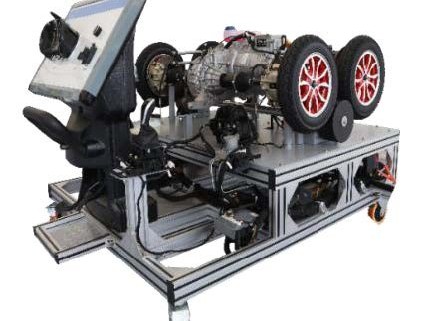

EV MOTOR WITH CONTROLLER TRAINING SYSTEM
Specifications
• The real and operable pure electric vehicle drive system fully demonstrates the composition and working process of the pure electric vehicle drive system
• Learn to drive motor cognition, drive motor principle and detection
• The automobile instrument is installed on the trainer panel, which can display the parameters such as power transmission process, vehicle speed and electronic control system fault indicator in real time
• The trainer panel is equipped with a detection control panel, which can detect resistance, voltage, current and other data of each control line and signal line through the detection hole
• The trainer panel is equipped with a throttle control device, which can facilitate acceleration and deceleration of the pure electric vehicle drive system
• Equipped with intelligent fault setting assessment system, which can be used with digital practical training platform based on integration of theory and practice.
TECHNICAL SPECIFICATION
• Electric vehicle synchronous motor and control system
• Transmission system
• Electric brake system
• DC-DC converter
• Detection control panel
• Intelligent fault setting system
ACCESSORIES :
Smart board
• Frame colours – Black
• Screen size – 40 inch” approximately
• Resolution 4K approximately
• Writing tool : Finger and touch pen
• Operation System : Dual system (Android + Windows) whiteboard or equivalent
• Latest windows and android or equivalent
• Connectivity : HDMI, USB 3.0, audio output, VGA, mic, LAN port.
• 8GB ram, 32GB rom approximately
• Built in camera and mic
• Microsoft office or equivalent
• Support latest 2.5G wifi module
• Install On Board Diagnose software
Multimeter digital 1000 Volt – 2 set
• Use 87V to measure AC current up to 10A
• frequency 200 kHz
• With stand spike in excess of 8000V
Electric motor
• Control model 2000W brushless approximately
• Lithium Ion Battery 60V/20AH approximately
• Torque 20NM approximately
