EV HIGH-VOLTAGE CONTROLLER TRAINING SYSTEM
Specifications

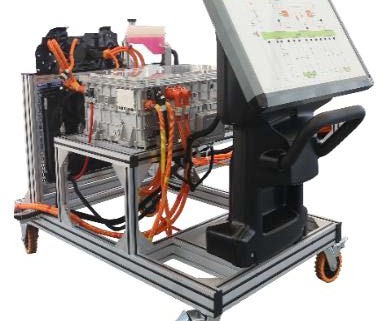

• The rack is installed with the original car high-voltage distribution box assembly, connected to the DC charging interface and the AC charging interface, and the charging operation can be used to charge the whole set of training equipment
• The training platform is equipped with a training inspection panel, and the working signals of all contactors and sensors in the high-voltage distribution box can be monitored in real time through the detection holes on the panel
• The internal structure of the high voltage distribution box can be clearly observed
• It can be used with digital practical training platform based on integration of theory and practice.
TECHNICAL SPECIFICATION
• Electric vehicle high voltage power delivery control module
• Hall sensor
• DC charging stand
• AC charging stand
• Detection panel
ACCESSORIES :
Smart board
• Frame colours – Black
• Screen size – 40 inch” approximately
• Resolution 4K approximately
• Writing tool : Finger and touch pen
• Operation System : Dual system (Android + Windows) white board or equivalent
• Latest windows and android or equivalent
• Connectivity : HDMI, USB 3.0, audio output, VGA, mic, LAN port.
• 8GB ram, 32GB rom approximately
• Built in camera and mic
• Microsoft office or equivalent
• Support latest 2.5G wifi module
• Install On Board Diagnose software
Multimeter digital 1000 Volt – 2 set
• Use 87V to measure AC current up to 10A
• frequency 200 kHz
• With stand spike in excess of 8000V
