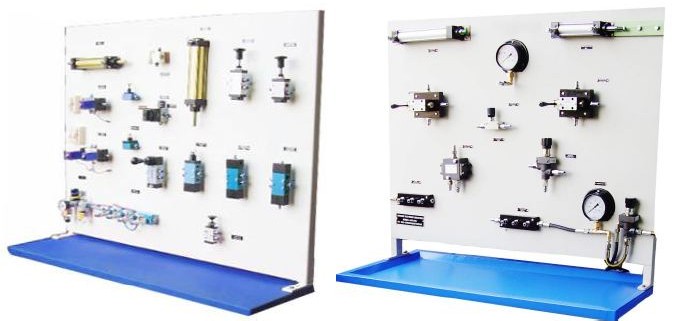

ATE-HYDPNEX-01 HIDRAULIC AND PNEUMATIC EXPERIMENT FOR EDUCATION

Hydraulic components include:

• Reservoir tank

• Hydraulic Filters.

• Hydraulic Pumps.

• Motors.

• One-way/ check Valves

• Relief valves

• Directional control valves

• Flow control valves

• Actuators/ cylinders

• Hoses

• Measuring instruments

Pneumatic components include:

• Reservoir tank

• Pneumatic Filters.

• Pneumatic Pumps.

• Motors.

• One-way/ check Valves

• Relief valves

• Directional control valves

• Flow control valves

• Actuators/ cylinders

• Hoses

• Measuring instruments
