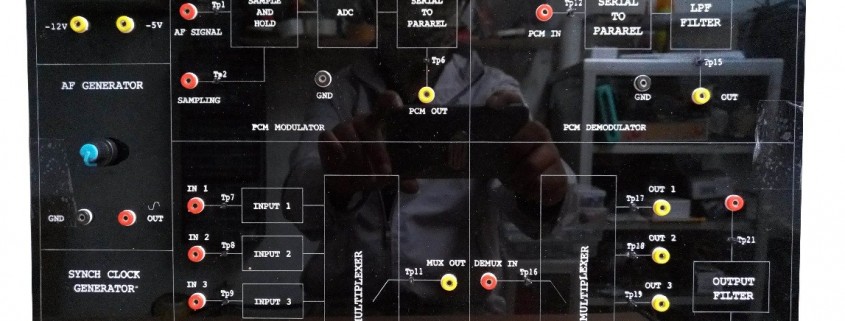

ATE-CTTDM07 COMMUNICATION TRAINER TDM KIT

ATE-CTTDM07 COMMUNICATION TRAINER TDM KIT is a Basic Communication Trainer System to understand Techniques of Time Division Multiplexing of Pulse Amplitude Modulation & Demodulation.

Various functional block diagrams are provided for Teaching/Training. This Trainer provides with various TestPoints to visualize the signals on Oscilloscope.

Features

• Functional blocks indicated on board mimic
• Input-output and Test Points provided onboard
• Built in DC Power Supply
• TDM Pulse Amplitude Modulation & Demodulation
• Modulator and Demodulator on same board
• Different type of sampling, Natural, Flat lop, sampled and hold
• On-board DDS Signal Generator for standard and arbitrary signals
• Selectable sampling frequencies
• Selectable Ramp frequencies
• LED Indicators
