ATE-CTPCM06 COMMUNICATION TRAINER PCM KIT

ATE-CTPCM06 COMMUNICATION TRAINER PCM KIT is a Basic Communication Trainer System to understand PCM Modulation & Demodulation Techniques.

Various functional block diagrams are provided for Teaching/Training. This Trainer provides with various TestPoints to visualize the signals on Oscilloscope.

Features:

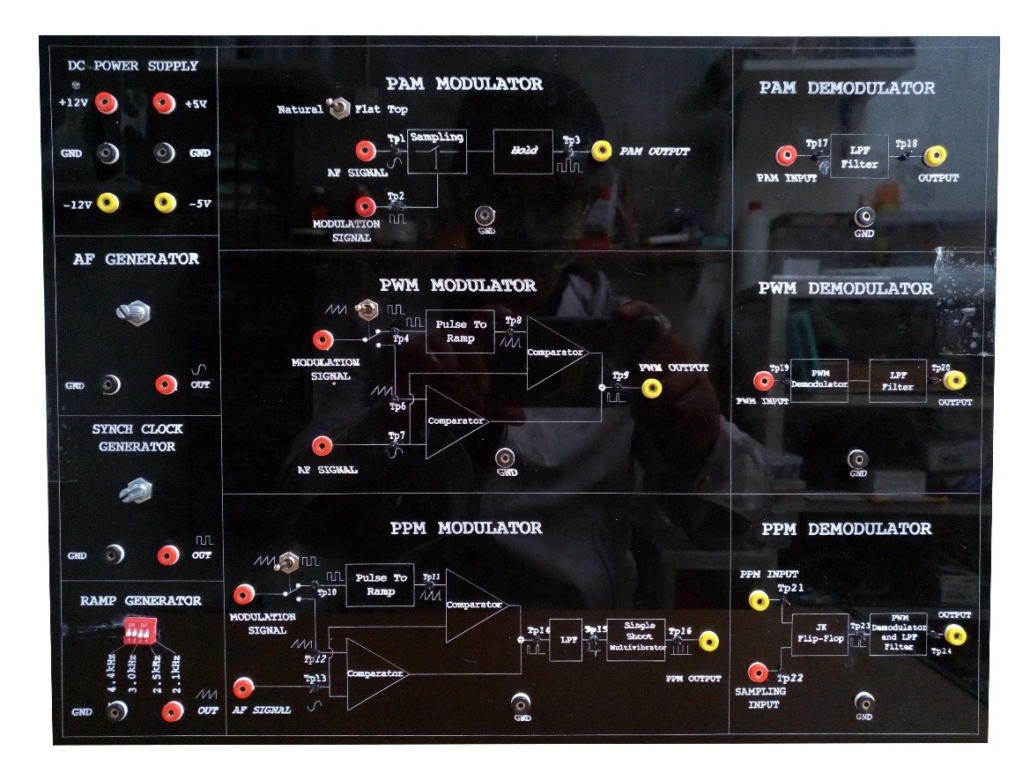

• Functional blocks indicated on board mimic
• Input-output and Test Points provided onboard
• Built in DC Power Supply
• All IC’s are mounted on IC Sockets.
• Two channel multiplexing & de-multiplexing
• Modulator and Demodulator on same board
• Different type of sampling, Natural, Flat lop, sampled and hold
• On-board DDS Signal Generator for standard and arbitrary signals
• Selectable sampling frequencies
• Selectable Ramp frequencies
• LED Indicators
