ATE-SINAIRB-01 SIMPLE SIMULATOR AIRBAG TRAINER

DESCRIPTION

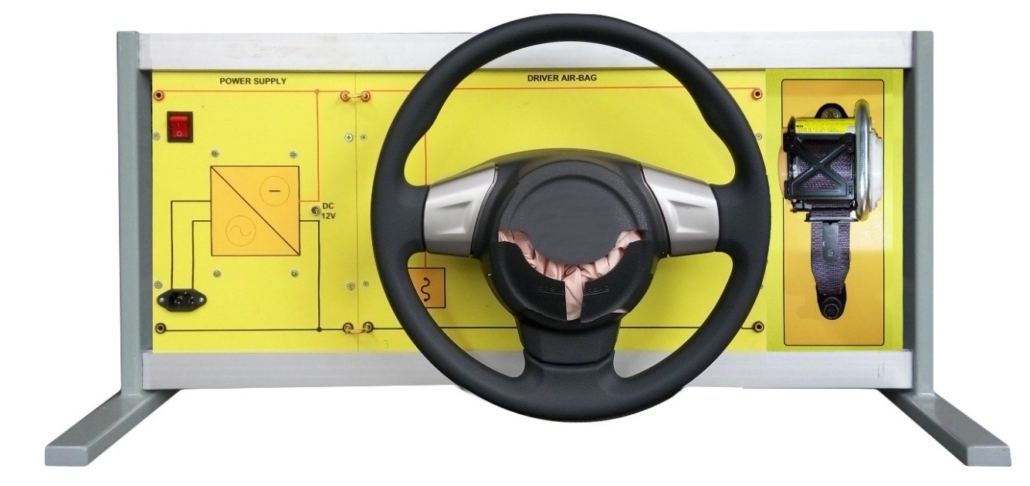

SIMPLE SIMULATOR AIRBAG TRAINER using real steering wheel unit with airbag to showing

• The simple working principle of airbag system
• Purpose and function of airbags and belt tensioners
• Fault simulation

LIST OF COMPONENTS

Steering wheel unit with fully functional reusable single driver Airbag

• Operating voltage: 12 V/DC
• Air supply: max. 8 bar
• Air connection: 4 mm quick-action plug connection
• Dimensions: approx. 500 x 300 mm

Vehicle power supply and crash sensor

• Input: 100 – 230 V/ 50 Hz- 60 Hz +6%-10%
• Output: DC 12 V/max. 15 A
• Dimensions: 200 x 300 mm
• Sensor : crash sensor Vehicle

Single Driver Safety Belt

• Operating voltage: 12 V/DC
• Inputs and outputs: 4 mm sockets
• Dimensions: approx. 100 x 300 mm

Panel Mounting Frame

• Side pieces with T-shaped base under the bottom rail
• Side pieces made of rectangular steel tubing
• Dimensions (L x W x H) : 870 x 310 x 400 mm

Connection Cable

• Power Cable
• Cable Banana Jack Connector Male Black
• Cable Banana Jack Connector Male Red

Exclude air compressor, please provide air compressor for the simulation process.
