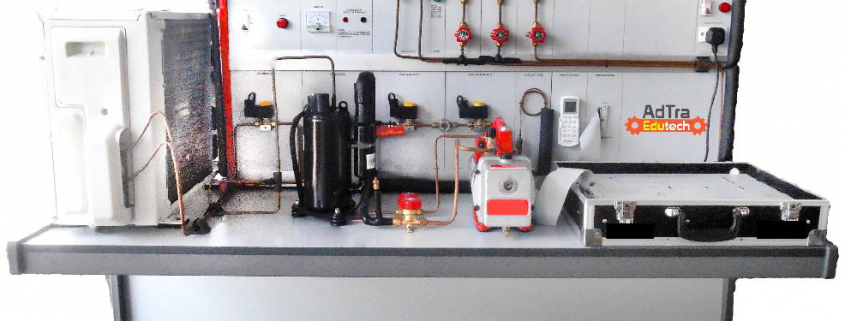

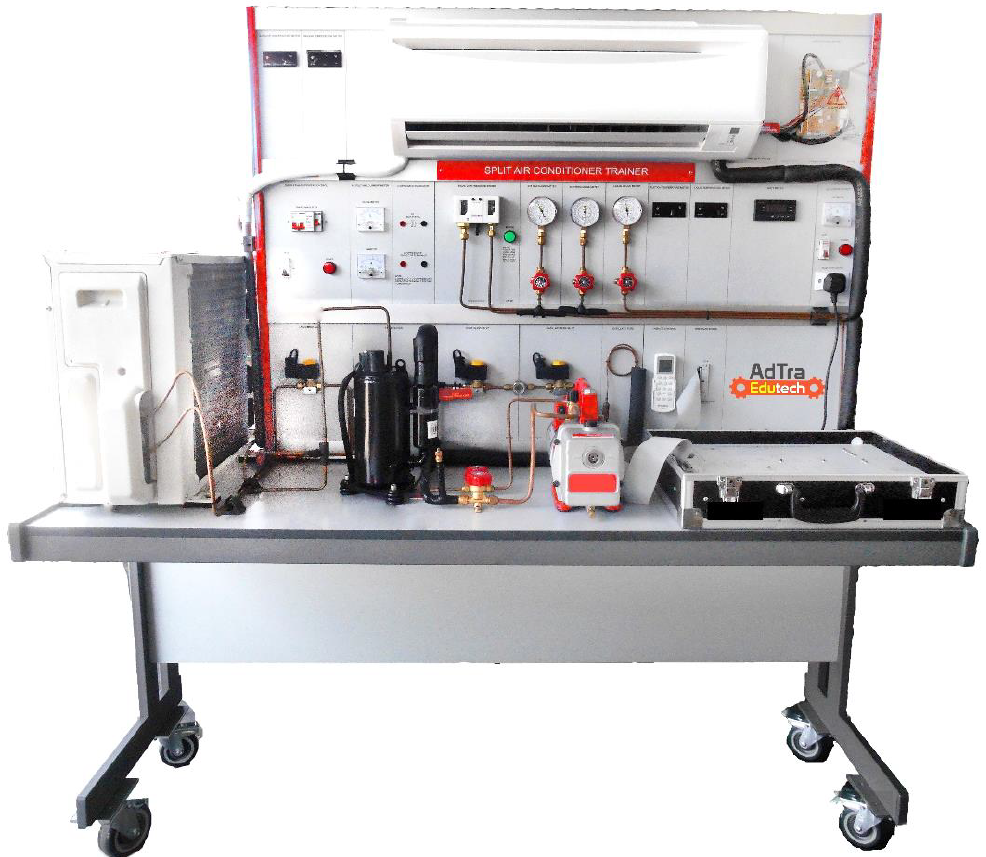

ATE-SAIRCOND-20 SPLIT AIR CONDITIONER TRAINER

DESCRIPTION
The Split Air Conditioner Trainer has been designed to explain and demonstrate the working principles of an air-conditioning system. It is mounted in steel frame. All the components used are original air-conditioning components by Industrial standard manufacturers.

FEATURES
Actual Air-con simulation ; Comprehensive metering allows measurements of various ; Quality industrially accepted component ; Robust and Durable and mobile design ; Comprehensive metering & control functions ; Designed to simulate common faults

PRODUCT SPECIFICATION:
Control Modes : Normal mode Fault
mode Operating Conditions : 0 to 45°C, 85% or Less (R.H.)
Input Power : AC 240V, 50/60Hz 1-Phase, ½ PK
The electrical control box contains an isolator / circuit breaker, voltmeter, ammeter, temperature zone selector switch and status indicators for the compressor.

COMPONENTS
– Air Conditioner Unit (Indoor unit)
– Condenser Unit (Outdoor unit)
– Compressor Unit
– Sight Glass
– Filter Drier
– Capillary Tube
– H/L Pressure Switch
– Hot Gas Pressure Gauge Meter
– Liquid Pressure Gauge Meter
– Suction Pressure Gauge Meter
– Voltmeter & Ammeter
– Temperature Meter

ACCESSORRIES
– Connection cable
– Experiment manual
– Refrigerant R22
– Gas checking gauges set
