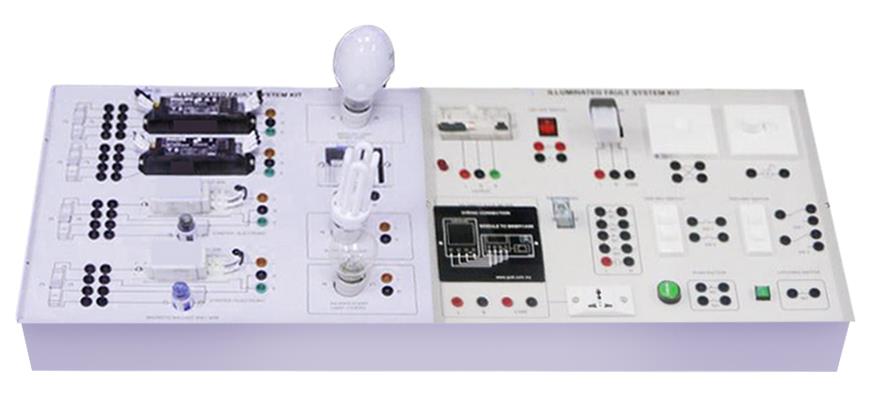

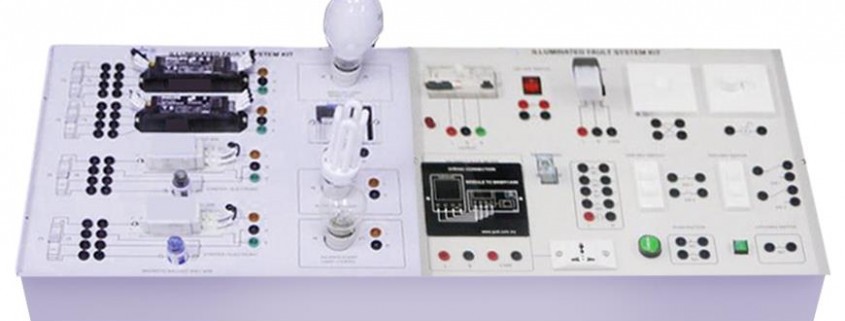

ATE-ILLUFSK-07 ILLUMINATED FAULT SYSTEM KIT

in

TECHNICAL DATA – General Features
This Illumination troubleshooting training kit unit are created for learning of connection circuit and finding fault points system of , fluorescent lamp, mercury lamp, short circuit connection, ELCB and MCB. All accessories are internally installed. There are joint options for each application need. Accessories symbols provided. The fault point simulation switches are beside of the trainer unit.

TECHNICAL SPECIFICATIONS

Protection:
i. ELCB 2P 25A iF 30 MA
ii. MCB 2P 10A 6KA
Lamps:
i. Fluorescent 12 – 20W
ii. Rapid Start type 12 – 20W
iii. Incandescent Lamp 100 – 200W
iv. Mixed-Light 100 – 200W
v. Mercury Vapour 100 – 150 W
Control switch:
i. Photo Switch, Dimmer Switch
ii. Latching Relay 220Vac, Push Button
iii. One way Switch, Two way switch
iv. Intermediate switch
Ballast:
12 – 20W Ballast/ Electronic Ballast
Measurement:
Kilowatt Hour Meter

INCLUDE
i. Model and Brand Brochure
ii. Instruction and Operation Manual
iii. Maintenance and Service Manual
iv. Experiment Topic
✓ Fluorescent 18W, preheat lamp
✓ Compact fluorescent lamp 18W, rapid start
✓ Fluorescent 18W, ballast electronics
✓ Mercury lamp 160W (without ballast)
✓ Dimmer circuit for Incandescent lamp
✓ Dimmer circuit for fluorescent lamp
✓ Photo switch
✓ One-way switch
✓ Two-way switch
✓ Mixed light
✓ Incandescent lamp
✓ Kilowatt hour meter
✓ ELCB
✓ MCB
