Commonrail Engine On Stand

Introduction

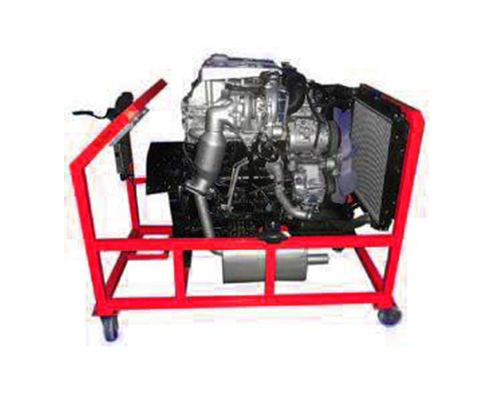

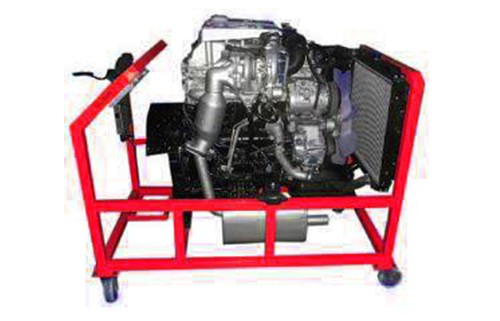

This is ATE-CMNRLKIA-004 Commonrail Engine On Stand (Kia Sorento 2.5 Crdi Diesel Turbo Novus), it is manufactured as an educational purpose with same condition of actual vehicle for efficient education and to make the training as practical as possible. all the main components installed are connected to a check point board to enable diagnostics, inspection, measurement and testing of each component with a supporting device. The objectives are to gained a working knowledge and understanding of the fundamental principles and test procedures of common rail diesel fuel systems.

ENGINE SPECIFICATIONS
Engine CC 2497
Bore (mm) 91
Stroke (mm) 96
Compression Ratio 19.3
Peak Power (hp) 140
Peak Torque (Nm) 315
Engine Type Piston
Direct Injection Direct Injection
Aspiration Turbo intercooled
Fuel Type Diesel

Technical data :
• Originally diesel commonrail system
• Commonrail sensors & actuators
• Turbo charger
• Fuel tank 10 liters
• Exhaust
• Unit charging system (Alternator with Regulator)
• Battery 12volt
• Commonrail ECU and Electric driver unit
• Engine brake system Cooling System Unit
• Radiator Hoses
• CHG indicator
• Heat Indicator Light
• Instrument meter
• Frame Steel
• Four rolling wheel
• Contact Lock
• Water pump
• Recervoir Tank
• Starter System Units
• Cold Indicator Light etc.
