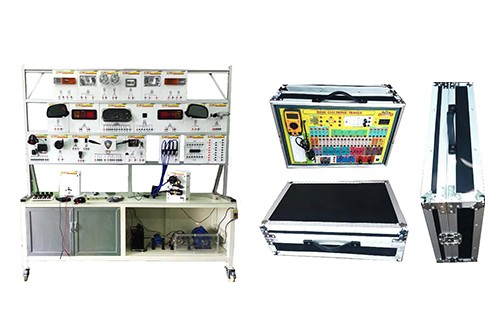

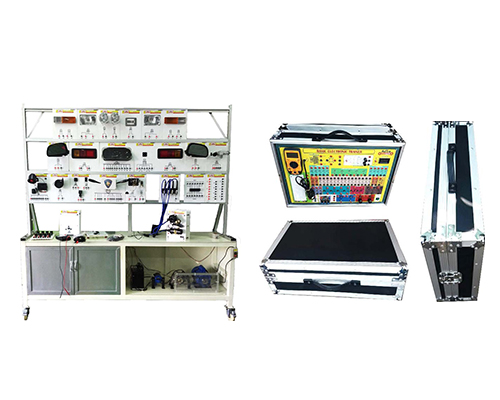

Automotive Electrical Wiring Trainer
DESCRIPTION
Automobile electrical system has gradually evolved over the years and today it assimilates automatic computer control of the automotive mechanics. In the early days, automobiles electrical system comprised of only basic wiring technologies that were used for distributing power to other parts of a vehicle. It had only switches, wires, relays and controlled motors as its key components but today’s electrical system includes sensors, actuators, alternators, battery, oxygen sensors, generator, starter solenoid, starter drive, high power electrical system and other devices.
FUNCTIONS OF AUTOMOTIVE ELECTRICAL
• As an on / off car
• As a side mirror control system
• As used for on / off car lighting systems
• As a distribution generator.
• As battery charger
SPECIFICATION
• The Trainer Board provided practice-oriented instruction using original vehicle components
• For assembling the exercises, the boxes are mounted on a vertical frame.
• The exercise assembly fast and straight forward.
• Electrical connections completed with 4 mm. Plugs and all termination are color – coded according to DIN standards.
• Typical results to the exercise and ease the task of student assessment :
➢ Starter Key
➢ Alarm Sytem
➢ Head Lamp ( Right and Left )
➢ Fog Lamp
➢ Horn System
➢ Washing System
➢ Interior Lamp
➢ Electrical control side mirror
➢ Side Mirror Left and Right
➢ Fuel level and Temp sensor
➢ Hand Brake
➢ Relay control module
➢ Fog Lamp switch, Hazard and Flasher
➢ Iginition Coil and Distributor
➢ Jumper Board
➢ Spark Plug
➢ Dashboard
➢ Switch Control
➢ Rear Lighting (right and left) , Signal Lamp (right and left), Parking lamp
➢ Fuse Box
• Power supply: input 220Vac 50 Hz. Output 12Vdc 15 A. 1 set.
• Battery 12 V (N 120) 1 set.
• Complete training operation for lecturer
• Simulation Software
• Basic Electronic Trainer
Basic Electronics Trainer is used for learning Fundamentals of Electronics with the aim to enable students to understand all the electronic components as well as the functionality and applicability.
• Power Supply, 220VAC input, 12VDC Output
• Variable Resistor, 0.5 Watt
• Switch-8 pcs,
• LED Experiment
• Standard Proto Board,
• Signal Generator, Frequency mode
• Transistor NPN / PNP
• Digital Multimeter, Ampere, Ohm, AC / DC Volt
• Component Library, resistors, Potensio, capacitor
