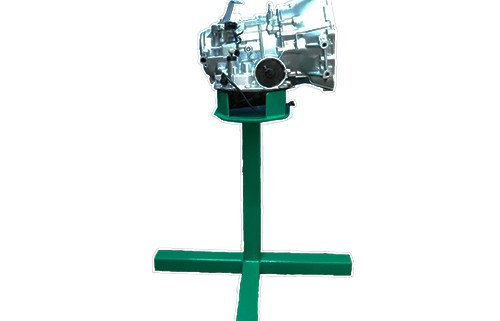

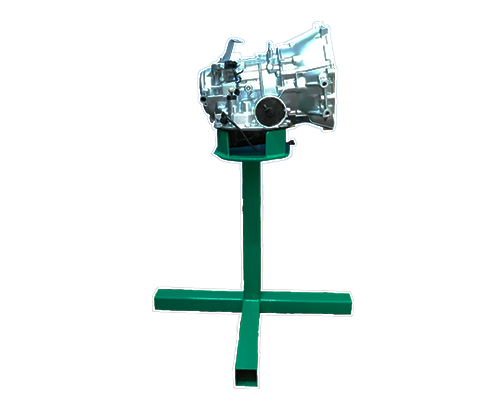

Automotive Transmission Gearbox

INTRODUCTION :

An automatic transmission, also called auto, selfshifting transmission, n-speed automatic (where n is its number of forward gear ratios), or AT, is a type of motor vehicle transmission that can automatically change gear ratios as the vehicle moves, freeing the driver from having to shift gears manually. Like other transmission systems on vehicles, it allows an internal combustion engine, best suited to run at a relatively high rotational speed, to provide a range of speed and torque outputs necessary for vehicular travel. The number of forward gear ratios is often expressed for manual transmissions as well.

TECHNICAL SPECIFICATIONS :
 Transmission type: Electronically controlled 4-speed full-automatic
 Torque Converter type: 3-element with damper clutch
 Engine stall speed: 2500 – 3000 r/min
 Transmission gear ratio:-
o 1st Gear 2.846
o 2nd Gear 1.581
o 3rd Gear 1.000
o 4th Gear 0.685
o Reverse 2 .176.
 Final reduction ratio (differential gear ratio) : 4.007
 Speedometer gear ratio: 29/36
