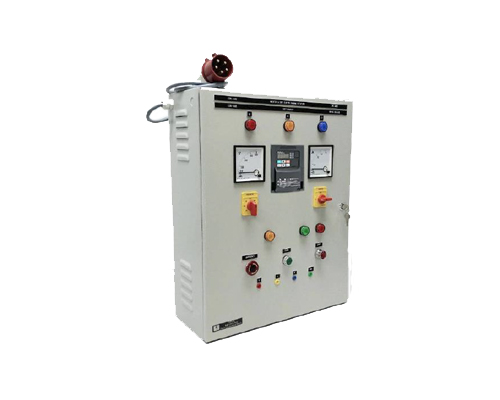

Inverter Trainer
GENERAL FEATURES
Automatic energy saving operation function
The function for automatically adjust inverter output power to a minimum during operation with constant speed. Best suitable for load of Gradual decrease, torque characteristics of fans/ pumps.
PID function.
Process control such as flow, air and pressure can be performed with this function.
Safe stop function.
With hardware, output can be shut off and Emergency shut-off operation is possible.
Radio noise filter incorporated.
The radio noise filter is built into the model (3-phase }, the noise level can be decreased.
TECHNICAL SPECIFICATIONS
Inverter Trainer exercise based on standard components as follows :
• Capacity: 2.2 kW
• Voltage: 400V
• Multi-function input: 5
• Optional braking unit: Yes
• Frequency reference: Voltage,
• Current input: 1 NO/NC
• Multi-function contact output: 1
• Multi-function transistor output: Through multifunction input
• Emergency shutoff input: 1 multifunction
• Analog monitor output: 1 multifunction
• Energy saving: yes
• Pulse input: no
• Removable digital operator: no
• Copy function: Optional operator
• Removable terminal: no.
Components / accessories mounted on the upper door panel are as follows:
• Control method: Sensorless vector control
• PWM: Sign wave PWM
• Carrier frequency: 2.5 to 10.0kHz
• Torque boost: All range auto
• Frequency command accuracy: Digital: ±0.01%; Analog: ±0.5%
• Frequency setting resolution: Digital: 0.01Hz/1Hz; Analog: 0.06/60HZ (1/1000)
• Output frequency: 0.1 to 400Hz
• Multi-function input point: 7 points
• Multi-function output point: 3 points
Voltage Technical Requirement
• Output capacity: 400VAC
• 3-phase AC 400V: 2.2 kW
• Starting torque: 150% (1Hz)
• Overload resistance: 150% for 1 minute
• Energy saving: yes
• PID control: no
• Slip compensation: yes
• Multi-step operation: 16 step speed + Inching frequency
• Auto-tuning: No
• Restart after momentary power loss: yes
• Operator: 4 digit 7 segment LED display
• Monitor type: Frequency / Current / torque / Main circuit voltage
• Acceleration / deceleration time: 0.0 to 6000s
• Acceleration / deceleration type: Linear, S-shape
• Protect structure: IP20
• Supporting DIN rail: yes
• CE standard: yes
• UL/cUL: yes
• Superiority: 8
• EMC Noise Filter and Radio Noise Filter. Usage Radiation noise decrease
• Braking Resistor Unit: braking torque improvement
• DC Reactor: control harmonic waves Moment of force improvement 400-V Class
• Input Noise filter: Noise decrease measures
• Input Noise filter for EMC directives: Noise decrease measures, 3-Phase 400-V Class
• Output Noise filter. Noise decrease measures Rated 12A
• AC reactor: control harmonic waves Moment of force improvement 11KVA
• Radio noise filter: Radiation noise decrease
• DIN rail unit: It installs it in the DIN rail. 2.2 kW
• Operator: LED display type
STANDARD ACSESSORIES
Rubber Mat (W x D x Thickness): 400 min x 300 mm x 4 mm (approx.)
