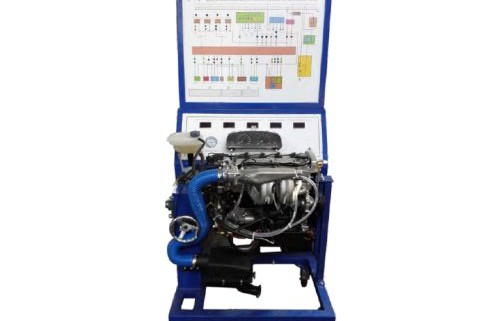

Electronic Controlled Engine Assembly and Disassembly Operational Training Set
Equipment Overview
• Equipped with universal self-locking truckles, the trainer is
moveable and easy for exible teaching.
• The sur face of frame is dealt with plastic spraying to ensure
color fastness, corrosion protection and ageing resistance.
• The complete frame is rigid structure welded with shock absorption
component, all the materials used for it are stable and reliable,
conforming to international standards.
• The control panel is made of pure aluminum-plastic material,
painted with colorized electronic control system principle diagram
that is the same as the original car control system.
PRODUCT COMPOSITION
Automotive Trainer
Assembly and Disassembly Trainer
Where there is CHOIEO, there is chance!
Electronic controlled engine with ip frame
• Engine assembly
• Speed reducer
• Flip frame
• Coolant temperature sensor,
• Intake air temperature sensor
• throttle control assembly
• intake pressure sensor
• oxygen sensor
Engine control and operation platform
• Engine control unit
• Original vehicle wiring harness
• Instrument
• assembly
• Ignition switch
• Complete heat dissipation mechanism
• Petrol tank and petrol pump assembly
• Storage battery
• Five digital
• voltmeters
• Vacuum manometer and fuel pressure gauge
• Colorized schematic circuit diagram panel
• Circumscribed detection terminal
• Fault setting box assembly
• Movable rack
• Operation instruction
• Experiment guidebook
TECHNICAL PARAMETERS
Dimensions 1500mm×1000mm×1900mm
Operation environment Temperature -5°C~40°C, Humidity: ≤80%
Transmission type Toyota Corolla 1ZR
Engine oil grade API standard SG class
Storage battery 12V48AH
Weight 290KG
Oil tank capacity 10L
Engine displacement Jetta 1.8L, Toyota 1.5L
