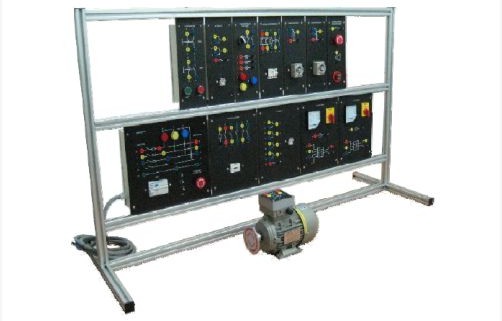

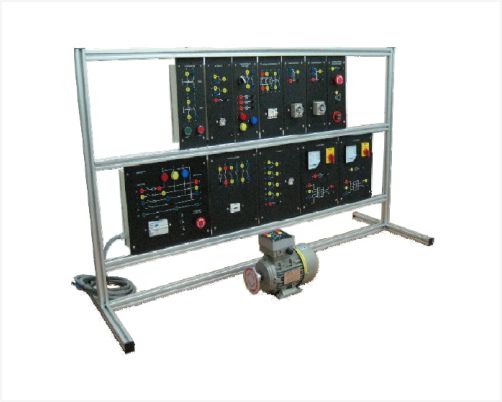

MOTOR CONTROL TRAINER

Specifications :

Breaker for wiring 1 X 3ø/415V 30A
Magnetic Switch 1 X 3ø/415V 20A (contact : 5a, 2b)
Over-load Relay 1 X 3ø/415V 9A(contact: 1a, 1b). For preventing over-load of motor and openphase operation
AC Relay 2 X AC 240V 3A (contact: 4c)
AC Relay 3 X AC 240V 3A (contact: 2c)
Alarm Buzzer 1 X AC 240V
Emergency Switch 1 X AC 240V 6A (contact: 1a, 1b)
Selector Switch 1 X AC 250V 6A (contact: 1a, 1b)
Push Button 4 X AC 240V 6A (contact: 1a, 1b)
Pilot Lamp 3 X Red, 2 X Green
Time Relay 1 X AC 240V 6sec (contact: 1c)

Flicker Time Relay 1 X AC 240V 6sec (contact: 1c)
Terminal Block 1 X 6 terminals (U, V, W, X, Y, Z)
AC Motor 1Ø Capacitor Start Induction Run Induction Motor, 3Ø Squirrel Cage Induction
Motor and 3Ø Wound Rotor (Slip Ring) Motor
Fuse 1 X 4A
Transformer 1kVA 3Ø Auto Transformer
