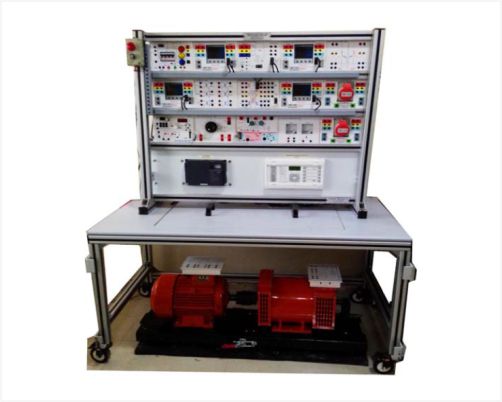

GENERATOR TRAINER

Salient Features
• VFD drive is used to control brushless prime mover’s speed in manual using RTU/SCADA as well as in auto mode      using synchronization relay.
• Multi function meters read the input voltage & frequency of generator output along with power analyser data.
• The Generator/ alternator coupled with prime mover have brought out six terminals from three phase 3 windings        (RYBs). The every alternate terminal of RYB is shorted and connected together to form Star connection (Neutral) at    the output of generator.
• The relay panel carries shrouded sockets to connect Generator Protection relay mounted below. The CT panel and      PT panel provide necessary interface between real world & relay.
• Emergency stop mushroom switch is provided with security key lock on the profile rack.
• Facilitates easy and safe wiring by students due to use of 4mm sturdy Shrouded banana patch cords and shrouded      socket arrangements for high voltage circuits
• Each panel has ABS molded plastic sturdy enclosure, and colorful screwless overlays showing circuits diagrams &        its connection tag numbers for easy understanding and connection
• Set of Instructor Guide & Student Workbook.
